Writing your First ROS 2 Package

Assuming your workspace, ~/ros2_ws/ in this instance, is completed following the steps in setting up your workspace, this should be your folder structure:

~/ros2_ws/
├── build/
│   ├── .
│   └── .
├── install/
│   ├── .
│   └── .
├── log/
│   ├── .
│   └── .
└── src/
    ├── CMakeLists.txt
    └── PARC2025-Engineers-League/
        ├── parc_robot/
        │   ├── .
        │   ├── .
        │   ├── CMakeLists.txt
        │   └── package.xml
        ├── .
        └── .

First navigate to the source folder in your workspace,

cd ~/ros2_ws/src

Then create a new ROS 2 Python package called test_publisher (for example) by running the command below,

ros2 pkg create test_publisher --build-type ament_python \
--dependencies rclpy std_msgs geometry_msgs

Change directory into the newly created ROS 2 Python package,

cd test_publisher/

The test_publisher package file structure is as follows,

├── package.xml
├── resource
│   └── test_publisher
├── setup.cfg
├── setup.py
├── test
│   ├── test_copyright.py
│   ├── test_flake8.py
│   └── test_pep257.py
└── test_publisher
    └── __init__.py

Moving the Robot Programmatically

The setting up your workspace guide has already shown how to control the robot with keyboard using teleop_twist_keyboard.

This guide will help you to move the robot by publishing commands to the /robot_base_controller/cmd_vel_unstamped topic programmically using Python.

To do this, create a file, robot_publisher.py inside the test_publisher directory, which has the __init__ file, and make it executable.

cd ~/ros2_ws/src/test_publisher/test_publisher
touch robot_publisher.py
chmod +x robot_publisher.py

Note

You need to change the permission of the file to executable to be able to run (as done in the last command shown above).

Now open the file and copy and paste the following code inside:

#!/usr/bin/env python3
"""
Script to move Robot
"""
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import Twist
import time


class MoveRobot(Node):
    def __init__(self):
        super().__init__("move_robot")
        # Create a publisher which can "talk" to Robot and tell it to move
        self.pub = self.create_publisher(
            Twist, "/robot_base_controller/cmd_vel_unstamped", 10
        )

    def run(self):
        # Create a Twist message and add linear x and angular z values
        move_cmd = Twist()

        ######## Move Straight ########
        print("Moving Straight")
        move_cmd.linear.x = 0.5  # move in x axis at 0.5 m/s
        move_cmd.angular.z = 0.0

        now = time.time()
        # For the next 4 seconds publish cmd_vel move commands
        while time.time() - now < 4:
            self.pub.publish(move_cmd)  # publish to robot

        ######## Stop ########
        print("Stopping")
        # Assigning both to 0.0 stops the robot
        move_cmd.linear.x = 0.0
        move_cmd.angular.z = 0.0

        now = time.time()
        # For the next 5 seconds publish cmd_vel move commands
        while time.time() - now < 5:
            self.pub.publish(move_cmd)

        ######## Rotating Counterclockwise ########
        print("Rotating")
        move_cmd.linear.x = 0.0
        move_cmd.angular.z = 0.7  # rotate at 0.7 rad/s

        now = time.time()
        # For the next 15 seconds publish cmd_vel move commands
        while time.time() - now < 15:
            self.pub.publish(move_cmd)

        ######## Stop ########
        print("Stopping")
        move_cmd.linear.x = 0.0
        move_cmd.angular.z = 0.0

        now = time.time()
        # For the next 3 seconds publish cmd_vel move commands
        while time.time() - now < 3:
            self.pub.publish(move_cmd)

        print("Exit")


def main(args=None):
    rclpy.init(args=args)

    move_robot = MoveRobot()
    move_robot.run()

    rclpy.shutdown()


if __name__ == "__main__":
    main()

This code will make the robot move straight for 4 seconds, stop for 5 seconds, rotate counterclockwise for 15 seconds and then stop.

Compile and Run

Note

We need to update the setup.py file in the ROS 2 package to include our new program. Add the following line in theconsole_scripts section of the setup.py file:

entry_points={
        'console_scripts': [
                'move_robot = test_publisher.robot_publisher:main',
        ],
},

move_robotis the ROS 2 executable node, test_publisher is the name of the created Python ROS 2 package, robot_publisher is the Python file we just created and main is the function called from the Python file.

Run the following commands to compile the code,

cd ~/ros2_ws
colcon build

To see it working, first run the robot in simulation by running the following command in one terminal,

source ~/ros2_ws/install/setup.bash
ros2 launch parc_robot_bringup task_launch.py

And run the following commands in another terminal to run this new program,

source ~/ros2_ws/install/setup.bash
ros2 run test_publisher move_robot

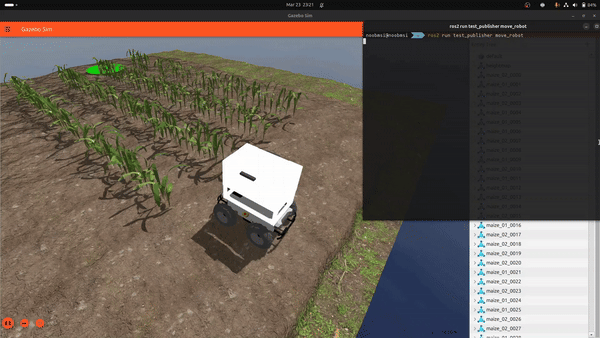

If you have set up everything well, you should see the robot moving in Gazebo as below,
